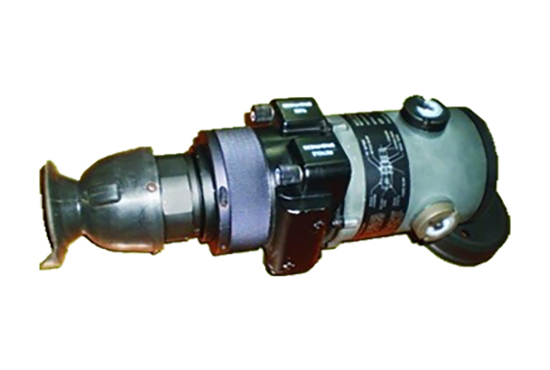

Individual Served Night Vision Weapon Sight (Equivalent To AN/PVS-4A)

Description: The individual served night vision weapon sight second generation night vision device is designed and manufactured to stringent specification in order to create a military night-time advantage. Individual served night vision weapon sight. This system can be bore sighted to all individual and crew served weapons. These weapons include the M-16, G-3, FAL Rifles, RPG-7 (RPJ-7), M-72, Rocket Launcher, M-60, MG-3 machine guns, M-79, M-203 grenade launchers and M-67 recoilless rifle.



Special Feature:

  • 25mm second generation I.I Tube
  • Internally mounted, adjustable, illuminated reticle projector
  • Interchangeable reticle patterns for use with different weapons including 5.56mm and 7.62mm rifles, light and medium machine guns, rocket launchers etc.
  • Automatic gain control
  • Individual tube brightness and reticle brightness control
  • Daylight cover to allow day-time bore-sighting
  • Completely portable
  • Easily tripod mounted
  • 3.5x magnification
  • 450m viewing range
  • Uses standard AA batteries
  • Produced as per US/NATO military standards





Technical Specification:

  • Magnification

3.6X (Nominal)

  • Field of view

14.5O

  • Resolution

28 p/mard

  • Image Intensifier

25mm I.I. Tube

  • Objective Focusing

25m to Infinity

  • Eye Piece Diopter Setting

+2 to –6 (Nominal)

  • Brightness Gain Control

Available

  • Power Supply

3 VDC

  • Battery Life

15 hrs at 20OC

  • Auto Brightness Control

Available

  • Weight

1.7 kg

  • Dimensions

L 240mm x W 120mm x H 120mm

  • Storage Temperature

+68OC TO –57OC

  • Operating Temperature

+52OC TO –54OC
